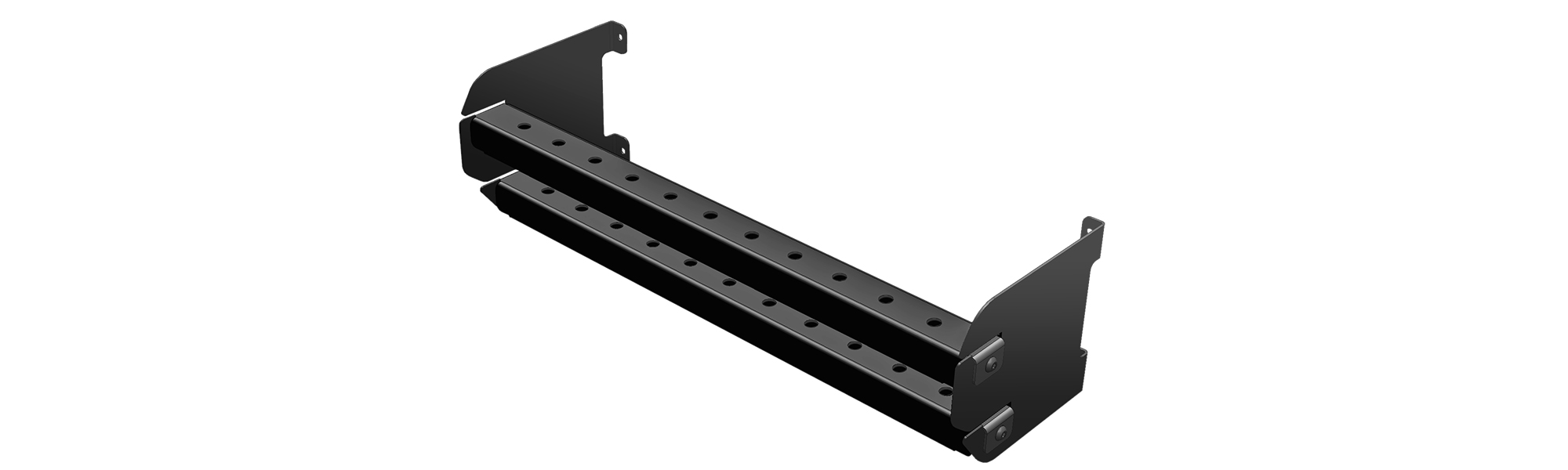

XTH Cable Hanger

The XTH Cable Hanger is an optional accessory exclusively for the PATCHXT Model.

The XTH Cable Hanger ships as a 4 piece kit and assembles in minutes to mount securely to the rear panel of the PATCHXT chassis with 4 Included Fastener’s & Hex Key.

The XTH Cable Hanger creates a strain relief benefit on the PATCHXT Chassis when all 24 DB-25/D-SUB Cables are connected to the rear panel of the system. DB-25/D-SUB Cables can vary in weight from manufacturer to manufacturer, and when combined with upwards to 24 cables can create a significant amount of weight on the PATCHXT Chassis’s rear panel.

The XTH Cable Hanger distributes the cable weight of the DB-25/D-SUB Cables evenly causing less stress on the mating connections on the rear panel of the PATCHXT Model.

• Heavy Duty Metal Construction
• Black Powder Coated Finish
• Penetrations in Crossbars for Cable-Tie Securements
• 4 Qty – M5 Fasteners (Included In XTH Assembly Kit)
• 1 Qty – Hex Key (Included In XTH Assembly Kit)

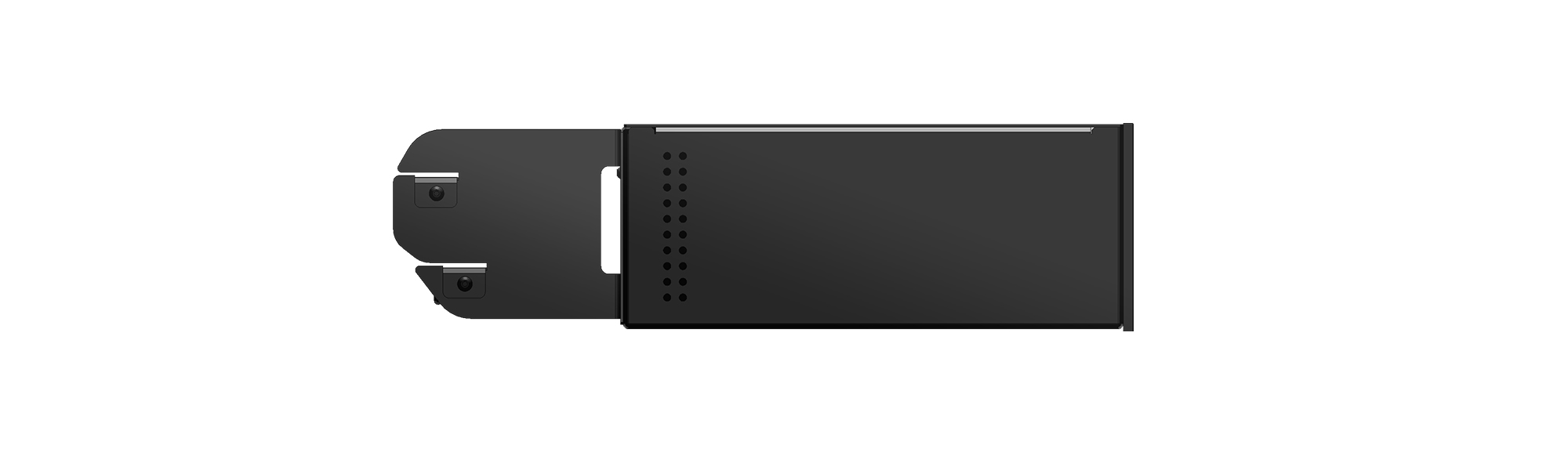

• XTH Cable Hanger Depth: 5.75” (Measurement from Rear Panel of PATCHXT to End of XTH Cable Hanger)
• Box/Packaging Dimensions: 20” (L) x 12” (W) x 2.5” (H) – (Weight: 4 lbs)
