Dangerous Music

Dangerous 2-Bus-XT

Remember the 2-Bus LT? The device that preserved all the blessings of DAW-based work such as total recall while removing the unpleasant side effects of digital summing in a 1RU unit that is as simple as it is uncompromising yet inexpensive?

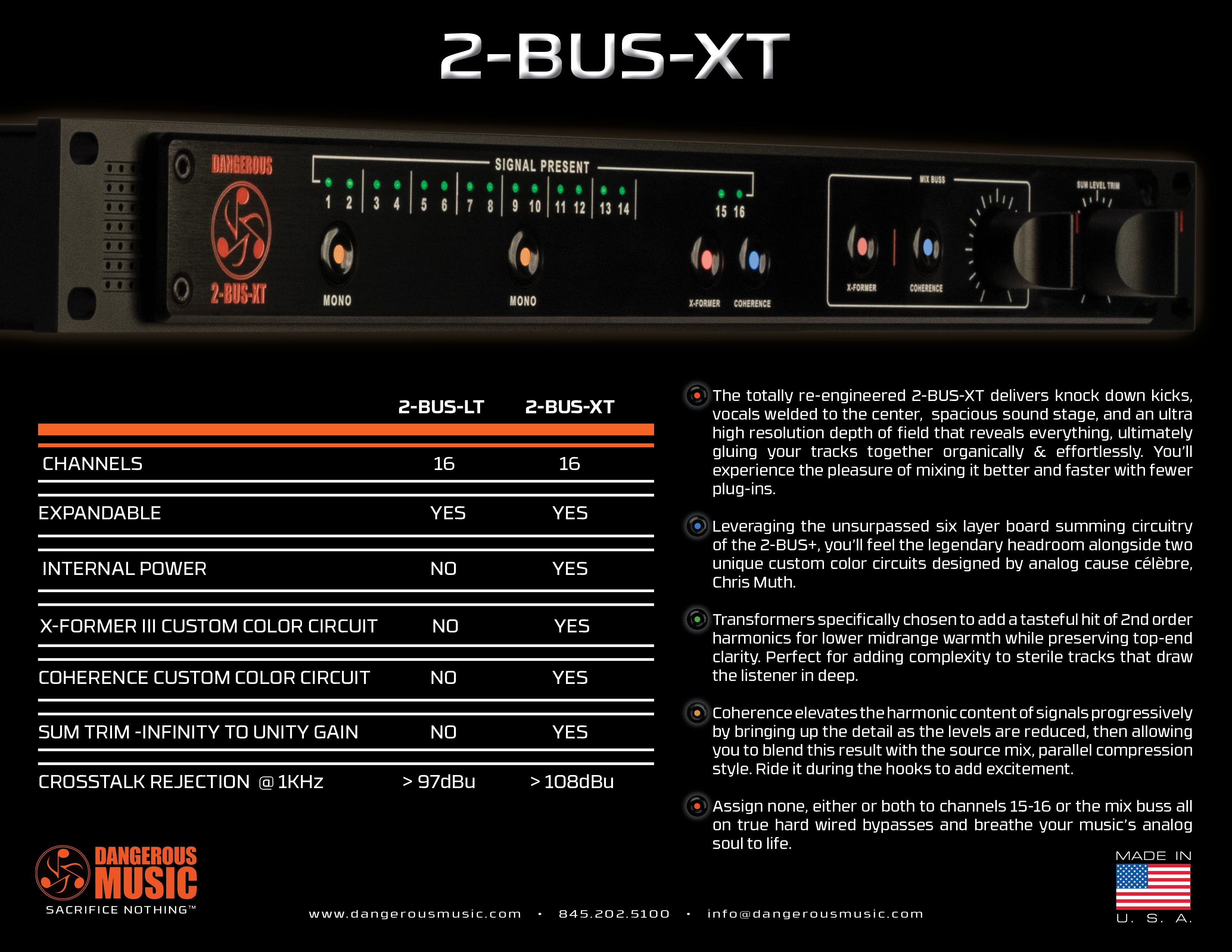

The Dangerous Music 2-Bus-XT is the worthy heir of the 2-Bus LT which earned its merits in countless studios around the world.

Still 8 pairs of stereo channels in 1RU but it comes with the looks and sonics of his big brother, the 2-Bus+.

The extremely low cross talk and perfect stereo image provide a wide sound stage as well as a perfectly welded dead center lead vocals and knock down kicks. This results in better mixes in less time and with fewer plug-ins.

On top of all that chief designer Chris Muth has added two switchable colour circuits: a transformer and a blend knob labelled Coherence for adding harmonics. The latter can be best described as phase coherent dimensional asymmetry. Both are applicable to either the sum, channels 15/16 or can be true hard wire bypassed.

Both colour circuits differ from those in Dangerous Music’s 2-Bus+ and AD+ to give you even more choices when combining the 2-Bus-XT with one or both of those.

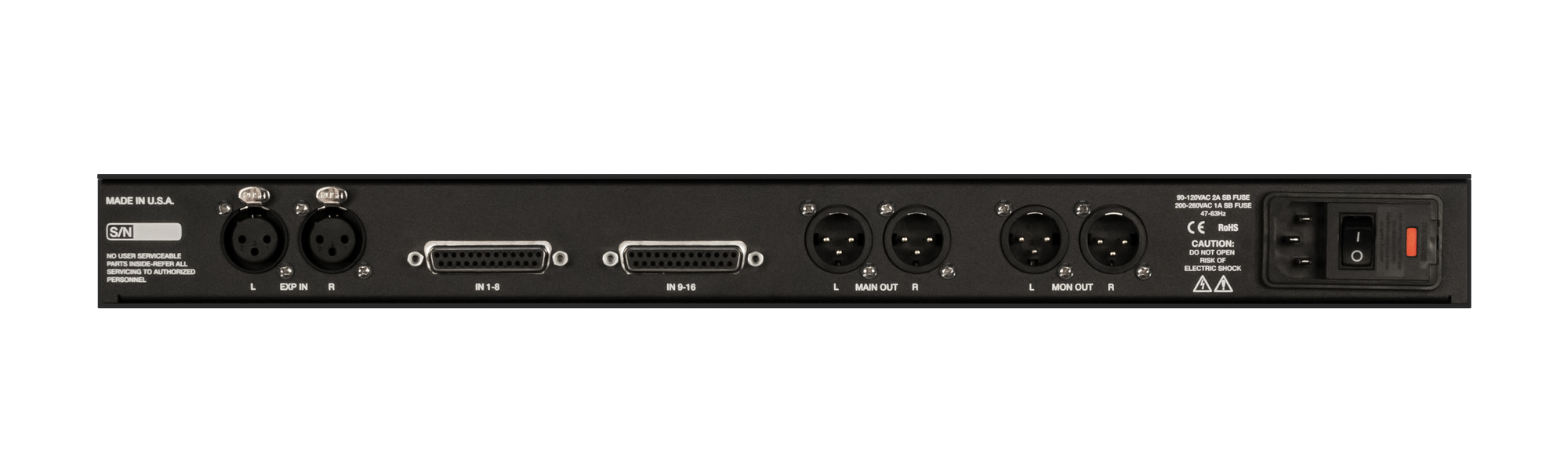

Two mono selectors for channel 1-2 and 9-10 and a trim poti complete the 2-Bus-XT, two XLR stereo outputs for Main and Monitor plus an Expansion Input to add other summing devices as well as the two D-Sub25 Inputs for a total of 16 Channels on the back of the unit.


  • 16 channels of active analog summing circuits designed by Chris Muth
  • Crystal clear and wide stereo imaging and perfect center through a stunning -109dB crosstalk rejection
  • Enormous headroom to meet today’s converters output level (+27 dBu max input level)
  • Two unique colour circuits of Muth Magic: Transformer and Coherence, applicable to the sum, channels 15/16 or hard bypass
  • Coherence features a blend control
  • 2 of 8 stereo pairs switchable to dual mono (1/2 & 9/10)
  • Expansion input for full expandability with additional summing units such as 2-BUS(+), 2-BUS LT, D-BOX(+) or simply another 2-Bus-XT
  • 2 x DB-25 connectors for the inputs and 2 XLR stereo outputs for Main and Monitor
  • Output trim potentiometer
  • Signal present LEDs
  • Only components of the high quality in the signal path
  • Occupies only 1 RU of space
  • Internal Power Supply
  • Hand built in the USA

Note: Dangerous Music, Inc. publishes actual measured specifications, not theoretical numbers derived from data sheets published by chip manufacturers.

Frequency Response: +- 0.1dB from 20Hz-50kHz

Total Harmonic Distortion: 0.004% in audio band

Intermodulation Distortion: 0.004% IMD60 4:1

Crosstalk @ 1 kHz: -109 dB

Noise floor: -82 dBu total energy in audio band

Max level: >+27 dBu

Nominal operating level: +4 dBu

Input impedance: 12 kohm balanced

Output impedance: 50 ohms balanced (600 ohm drive capable)

Power consumption: 25 watts


Dimensions & Weight:

Device: XX x 48,3 x XX cm, 7 (?) kg

Box: 55 x 45 x 20 cm, 8 (?) kg


Scope of Delivery


3-Pin IEC auto-switching AC Power, 120V (US), 240V (Europe)
