Guzauski Swist

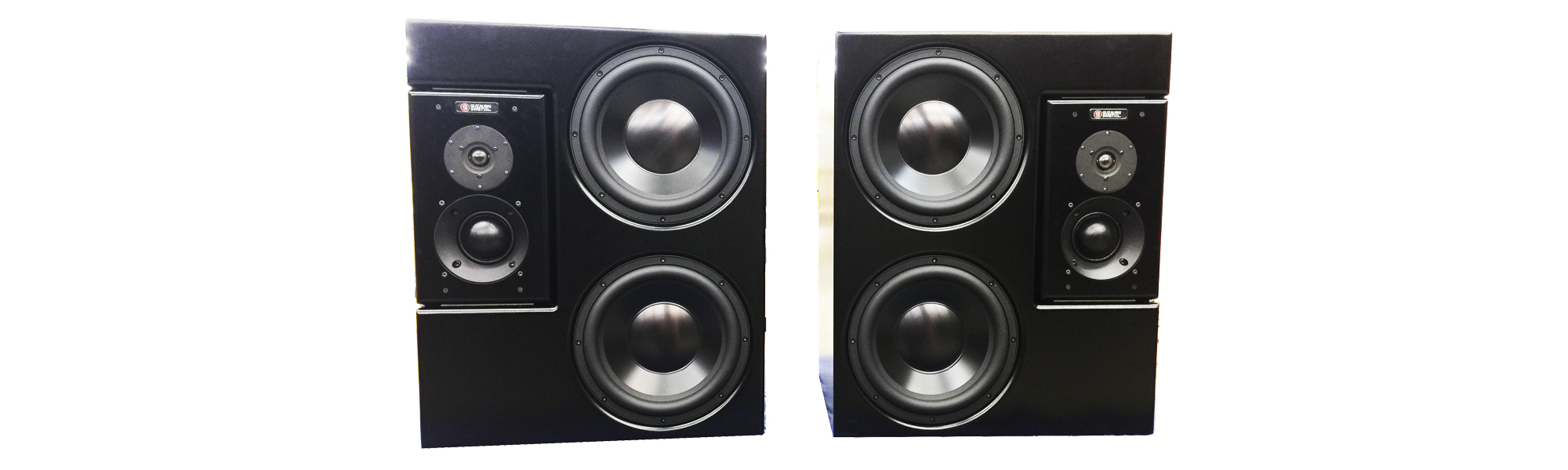

GS-4a Studio Monitor System

The Guzauski-Swist GS-4a 3 x 2 way studio monitor system is designed for professionals to take the punishment of a tracking or writing session as well as provide the extreme accuracy and translation required for mixing. “No compromises.” That’s the Guzauski-Swist motto. The Guzauski-Swist GS-4a Studio Monitor Systems are a perfect example of quality craftsmanship and over 40 years of research and development.
The Guzauski-Swist Audio Systems GS-4a Studio Monitor System consists of the finest state-of-the-art components currently available. Delivering accurate full bandwidth frequency response and wide dynamic capability are hallmarks of this system. The Guzauski-Swist Audio Systems GS-4a studio monitor system’s innovative design minimizes ear fatigue while delivering superb sonic accuracy for near-field or mid-field monitoring.

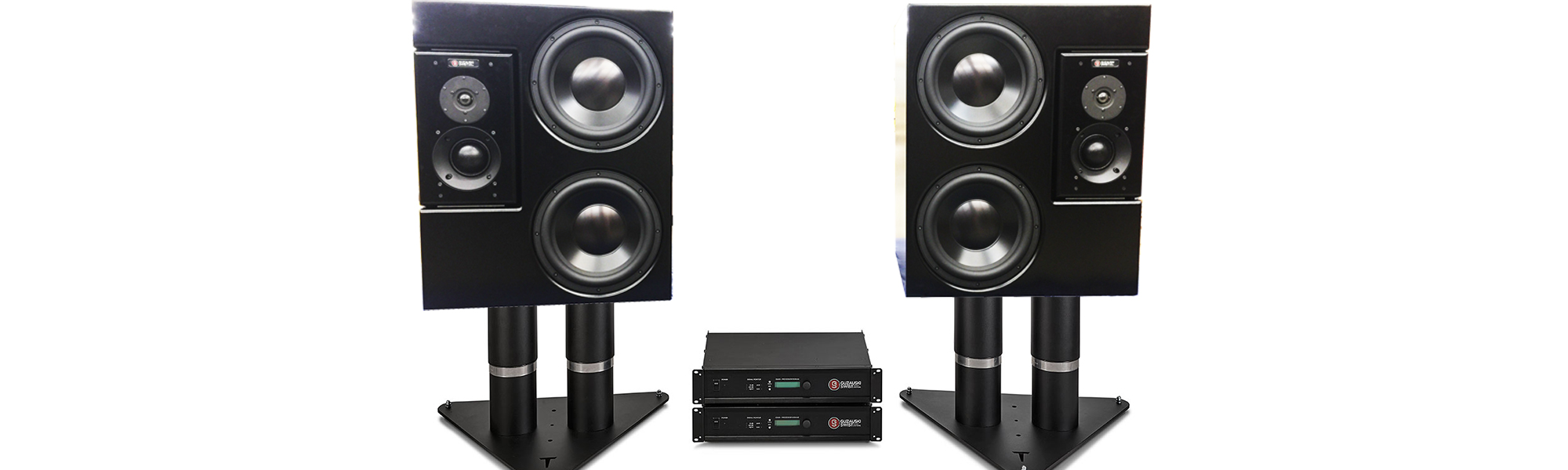

Guzauski-Swist GS-A3i Amplifier & DSP Module:

Produces over 3.5 kilowatts per stereo pair. The Class D power amplifier circuits utilized are approximately 85% efficient and produce much less heat than older Class AB circuit designs. You could roast a pig on the heat sinks required on an AB amplifier producing similar power output as the Guzauski-Swist GS-A3 Amplifier Module. The DSP Processing Module is a primary component to the GS-4a System delivering the end user a high degree of room frequency compensation through its front end.

The Guzauski-Swist “G-S DSP” software application gives your computer user an option to control the unit from a remote PC. The Guzauski-Swist DSP “G-S DSP”, software application is designed to easily control and monitor the Guzauski-Swist DSP control module device, allowing the user to get the whole picture on one screen. Programs can be recalled and stored from and to your PCʼs hard drive, thus expanding the storage to become virtually limitless. The Guzauski-Swist DSP “G-S DSP” comes with a wide array of presets configured for precise integration into the acoustical environment in which it is installed.

Guzauski-Swist GS-4a Iso-Bracket System:

The Guzauski-Swist Iso-Mounting Bracket System (patent pending) is the result of countless hours “behind the console”, studio design and acoustic measurement. Larry Swist has designed many of the worlds finest and most notable recording facilities. Mick Guzauski can be found in the credits of countless hits and multi-platinum releases from the top labels around the globe. As Mick and Larry have been contributing to the professional audio and recording industry for over 40 years they have designed an innovative isolation system coupled with a bracket to deliver the ultimate monitoring experience while minimizing ear fatigue for those late nights and sessions that can go on for hours.

Guzuaski-Swist GS-4a Studio Monitor system crossover points:

  • 3 kHz and 380Hz at 20dB/Octave
  • Speaker Component Power Ratings:
  • Tweeter = 350w @ 8 ohms
  • Midrange = 200w @ 16 ohms
  • Woofer = 1000w @ 4 ohms

Guzauski-Swist professional studio monitor and pro audio systems are made in the U.S.A. with no compromises. Guzauski-Swist pro audio systems, studio monitors and accessories are made with precision components and the highest quality of craftsmanship and design.

  • 2 x 12″ low resonance, long excursion driver in a sealed cabinet eliminating port turbulence noise
  • 3″ Dome VOLT mid range capable of high power handing and extended bandwidth which keeps the vocal frequency range away from crossover points
  • 1″ Morel Soft dome Tweeter known for smooth and extended frequency response with exceptional power handling
  • 3700 Watts of class D amplification in a separate rack chassis
  • Rugged high current multi-pin Speakon™ connectors
  • Sofit-mount or standalone application
  • Digital processor contains the very best AD/DA converters and analog components available today
  • Integrated DSP with user definable room compensation equalization and delay
  • AES Digital and analog inputs
