Guzauski Swist

GSXED-18 Sub System

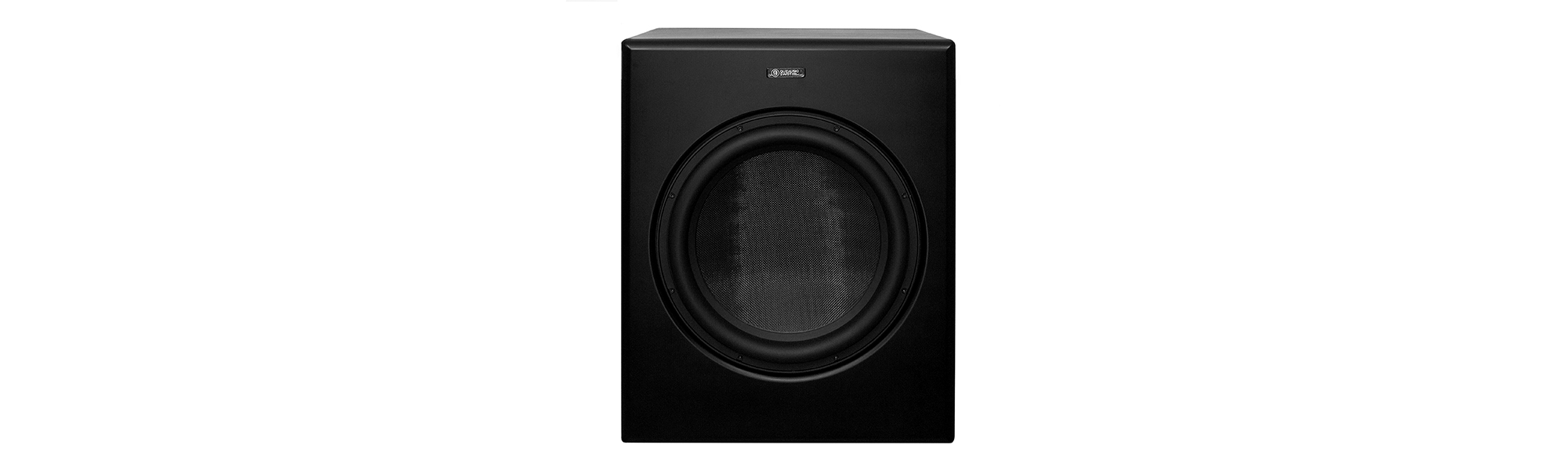

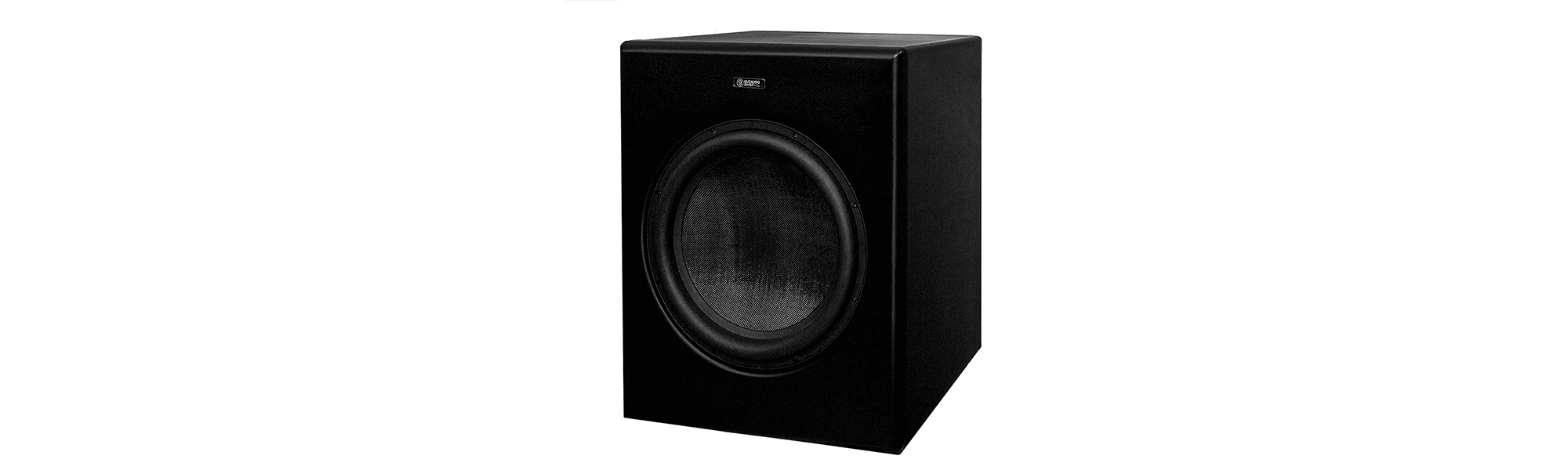

The Guzauski-Swist GS-XED18 Sub System is available when an owner of the Guzauski-Swist GS3A Stereo 2.0 Monitoring System wishes to convert their existing 2.0 Stereo system into a 2.1 , 2.2 system or a 5.1 system.

The GS-XED18 hosts a powerful 18″ Dayton Ultimax which can produce more output at the lowest frequencies for example at 20Hz around 109dB. The Ultimax has lower 3rd harmonic distortion at extreme low frequencies at high levels because less of the available Xmax is used.

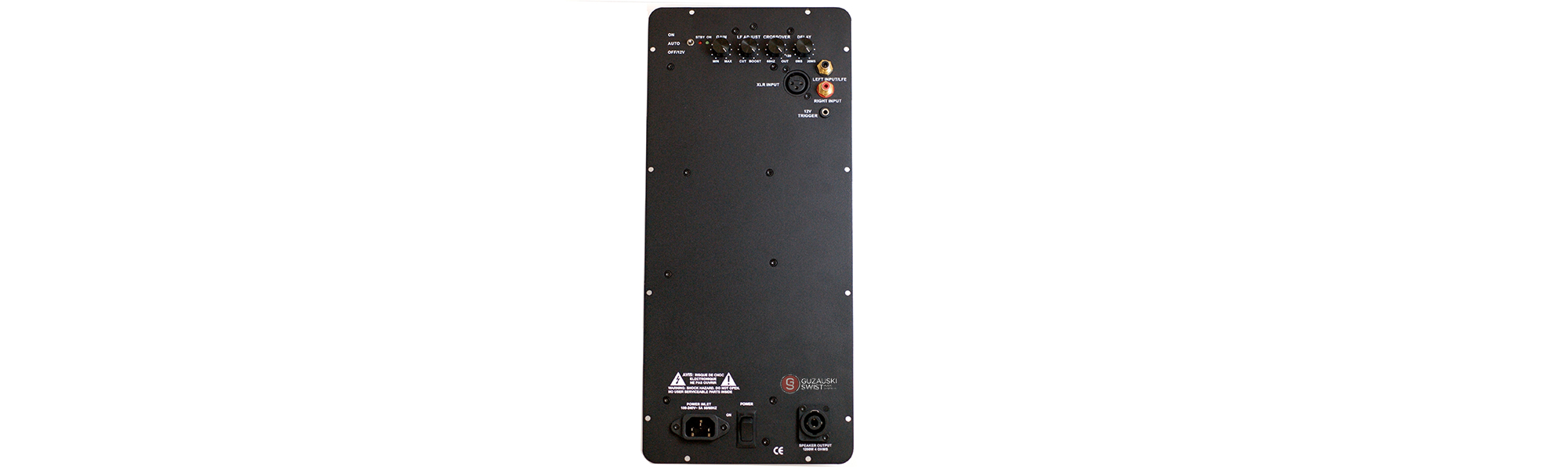

Plateamplifier features :

Switchable ON-Auto-OFF/12V trigger. Auto on with signal applied

12V trigger turn on. 3.5mm minijack input

Rotary controls: Gain, LF Adjust, Crossover, Delay

Inputs: 2 x RCA summing, XLR input





System Includes:

1 x XED18 SUB incl Plateamplifier



Specifications

Amplifier :

  • Power Output: 1200W/4, 620W/8. 100VAC maximum output voltage,
  • 38A maximum output current
  • AC Power Input: 100-240VAC 50/60Hz

Speaker :

  • 18″ design for enormous air movement
  • Over 2″ of total cone travel!
  • 1000 watts RMS power handling
  • Dual mirror-imaged linear spiders ensure distortion-free excursion
  • Dual 2 ohm, 2-layer copper voice coils
  • Large vented pole piece and under-spider venting
