sidechain.one Bundle

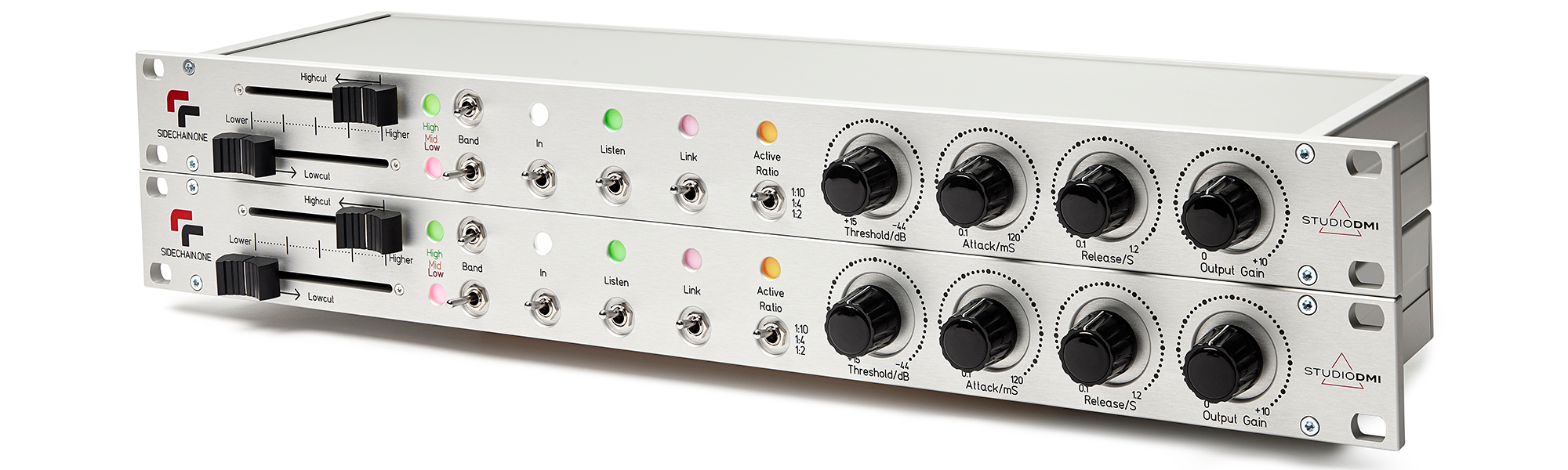

The sidechain.one bundle are two versatile, extremely clean Mono VCA compressors with a wide range of attack and release times, that allow for multiple applications.

The main feature is, as the name indicates, the filters in the sidechain. These sophisticated control options are unique and open new possibilities

for shaping sound. Use sidechain.one in mono on individual tracks or in stereo on the 2-Bus for mixing or mastering.

The focus of this unit is on the high-pass and the low-pass filters for the sidechain. The filters range from 20Hz – 200Hz, 150Hz – 2.3kHz, and 1.5kHz – 20kHz, respectively.

The Listen feature lets you listen to what the side chain is receiving and can be used as a high quality band-pass filter.

The compressor ratios are 1:2 (soft), 1:4 (medium) and 1:10 (hard), attack times range from 0.1ms to 120ms and release times range from 0.1ms to 1.2s.

The unit comes with an external power supply (110-240V) and a standard IEC cable. The stereo bundle includes a link cable.

Inspired by Luca Pretolesi’s (Diplo, Major Lazer u.a.) workflow and techniques, our team created a new way of sidechain based compression.

Features:

•VCA compressor with very flexible sidechain filters

•Quality components for the best possible sound

•Continuously variable high-pass and low-pass filter for the sidechain in the ranges 20Hz – 200Hz, 150Hz – 2.3kHz, 1.5kHz – 20kHz

•Pre-listen function to control the filtered signal

•compressor ratios 1:2, 1:4, 1:10

•Threshold +15dB to -44dB

•Changes with Attack (0.1ms bis 120ms) and Release Settings (0.1ms bis 1.2s) very audible

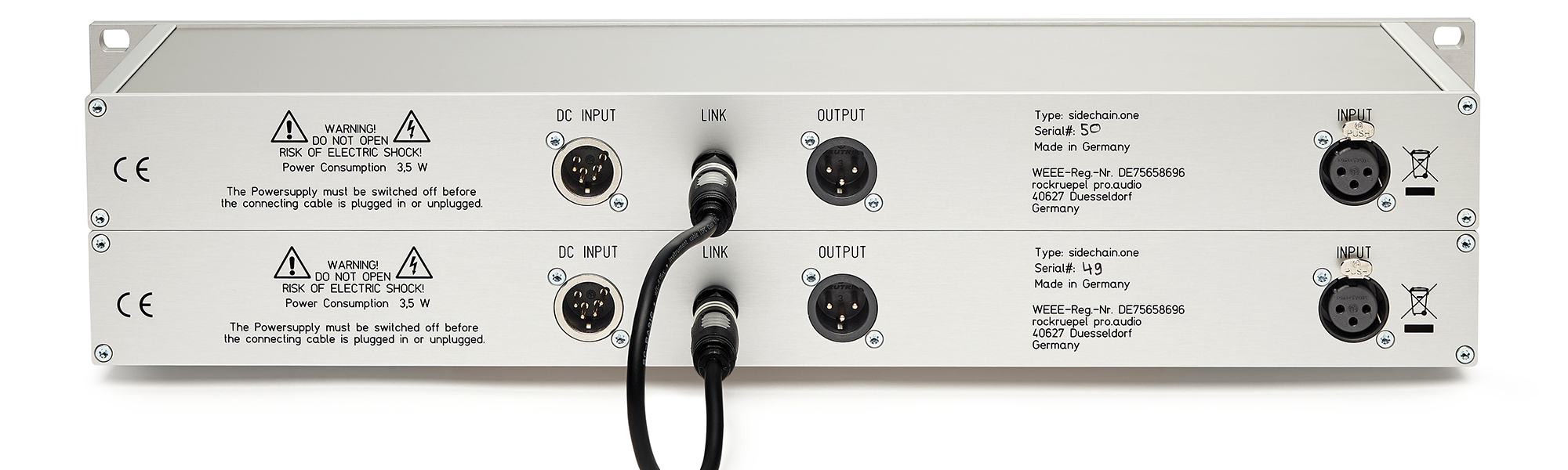

•XLR In & Out

•Ext. switching power supply (100 – 240V) with standard IEC cable

•Link two device together for stereo using a standard TS cable (incl. in the stereo bundle)

•Ideal for mixing and mastering

•designed and manufactured in Germany

Frequenzgang

40Hz – 15 kHz ± 0,09 dB

20Hz – 20 kHz ± 0,22 dB

Verstärkung: 0 to +10 dB

Max Ausgangspegel (40Hz k3 -50dB): +22dBu

Spanning Gerät: +/- 15V

Netzteil: DC 100-240V AC

Stromverbrauch: 3,5W

Eingang:  symmetrisch

Eingangwiderstand 22kOhm

Eingangsdämpfung @ 15KHz -45dB

Ausgang: symmetrisch

Ausgangswiderstand 80Ohm

Ausgangsdämpfung @ 15KHz -42dB

Harmonische k3: @ +4dBu -61dB @ 40Hz

-60dB @ 1kHz

  -60dB @ 6.3kHz

Rauschabstand pGer -79 dBqs (CCIR 486)

(@+4dBu, Ausgang @ +10dB) pFr -84 dBq (Bandbreite 10Hz – 30 kHz)

Außenmaße Gerät: Tiefe 13,5 cm, Breite 48,3 cm, Höhe 4,4 cm (1HE)

Gewicht Gerät: 1,15 kg

Außenmaße Karton: Tiefe 31 cm, Breite 60 cm, Höhe 15 cm

Versandgewicht: 2 kg

Außenmaße Doppel-Karton (Bundle):  Tiefe 31 cm, Breite 60 cm, Höhe 30 cm

Versandgewicht: 4 kg
